How to use the Luz V16 GPS Baliza

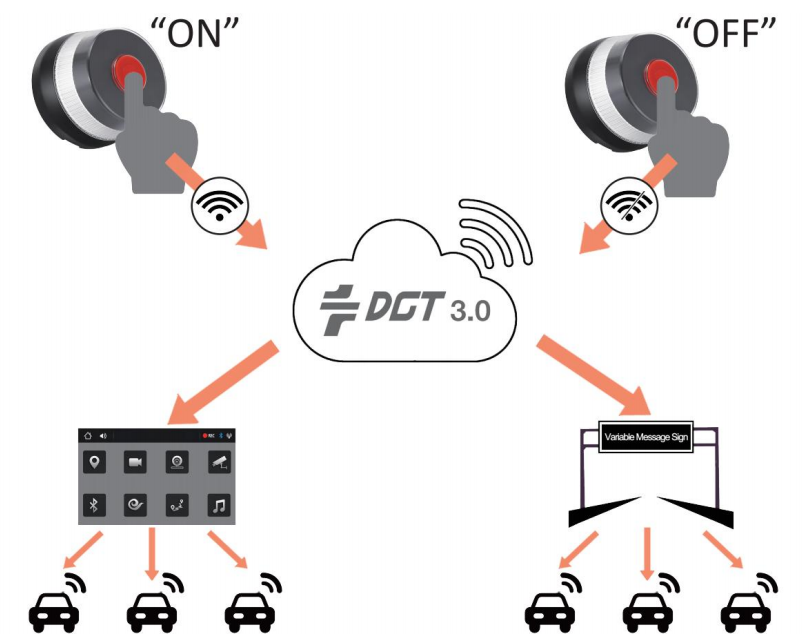

CH-009 Beacon Light IoT operates at the touch of a button:

“ ON ” PRESS THE TOP BUTTON

Pressing the button activates the unit.

During start-up, the device will obtain its geographical position by means of a GNSS (Global Navigation Satellite System) signal.The

NB-loT module will connect to the Telefonica mobile network and every 100 seconds will send a normalised and anonymous data

frame to a server connected to the National Access Point for traffic and mobility.

”OFF “  PRESS THE TOP BUTTON

Pressing the button again stops the flash pattern and a last data frame will be sent to the server indicating the end of the incident.

From this moment on, the device is switched off and completely disconnected, so its position will no longer be visible to connected

vehicles and on information panels.

Warning: Switch off your device only when you are ready to start driving, to avoid an accident,as it will not be digitally visible.
